4 Stroke Engine Honda Gx35 Motor Brushcutter Trimmer Brush Cutter

• Full 360° "any-side-up" operation - use and store in any position
• Efficient port configuration and large diameter valves maximize power output
• Precision engineered components result in lower vibration
• Lighter piston minimizes vibration
• High quality materials, fit, and finish
• Easy Starting
• Exceptionally Quiet
• Fuel Efficient, high output operation
• Smooth Performance

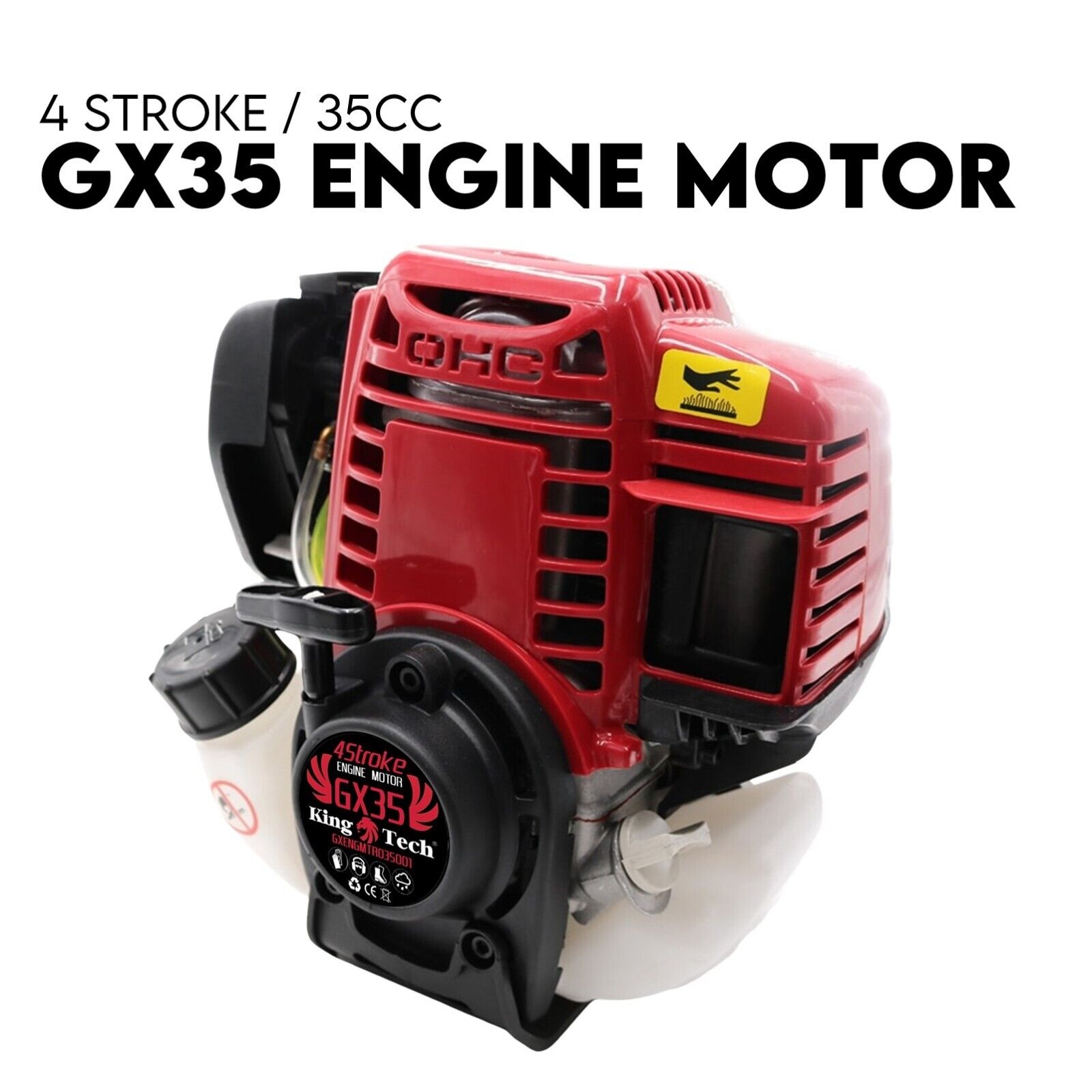

The new Kingtech GX35 35.8cc displacement, 360°- inclinable 4-stroke engine is an ideal power source for a variety of hand-held power equipment.

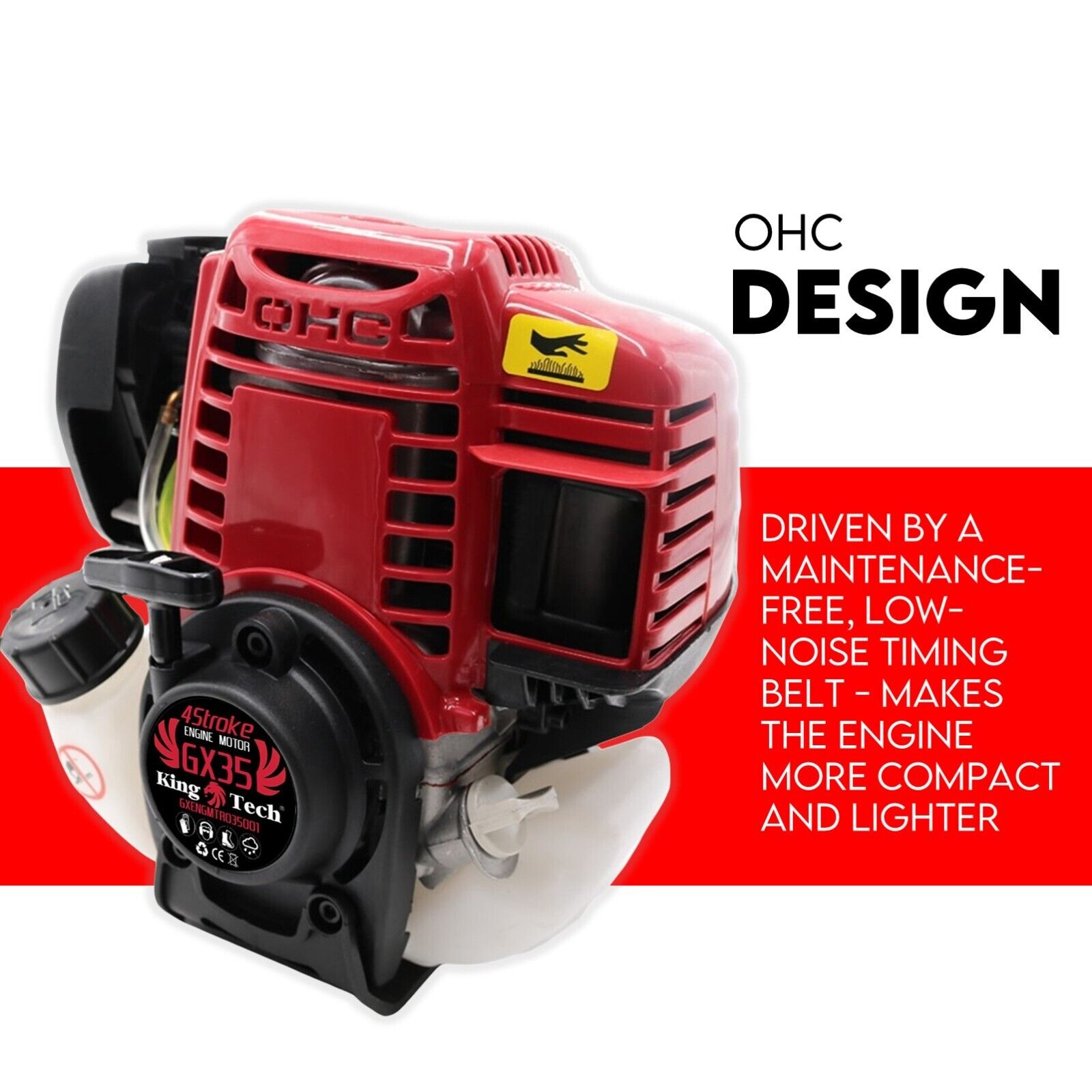

The engine’s oil-immersed timing belt OHC configuration makes it possible to incorporate the valve train into the oil reservoir for substantial weight and volume savings. Its rotary slinger pumping lubrication system ensures full oil lubrication no matter what the engine angle, allowing it to be continuously operated or stored in any position.

It also delivers an outstanding balance of all-round performance combined with low noise and low vibration, for efficient, carefree operation.

COMMON APPLICATIONS

Commercial lawn and garden equipment
Tillers / cultivators
Construction / industrial equipment
Agricultural equipment
Water pumps

SPECIFICATIONS

Engine type: 4-stroke single cylinder / OHC petrol engine
Bore x Stroke: 39 mm x 30 mm
Displacement: 35.8 cm3
Max Power Output: 1.5 kW @ 7,000 rpm
Max Torque: 1.6 Nm @ 5,500 rpm
Max Rotation: No Load @ 10,000 rpm
PTO Shaft Rotation: Counter Clockwise
Ignition System: Transistorized magneto
Starting System: Recoil
Cooling System: Forced Air
Air cleaner: Semi-dry
Oil Capacity: 0.08 Litres
Fuel: Unleaded 90 or higher
Fuel Tank Capacity: 0.65 Litres

Weight: 4.2 kg

IN THE BOX

1 - GX35
1 - Manual
